Topology Aware Routing 設置與研究

TL;DR

Topology Aware Routing(TAR)的設置 與流量分配機制

背景

公司最近服務開始要從單 zone 上到 multi-zone 起初因為，上到 multi-zone 之後，跨 zone 的傳輸費用暴增 故想透過設置 TAR 除了支援 mult-zone 以外一定程度減少跨 zone 的網路傳輸費用

設置 TAR

設置方式其實很簡單，只需要在服務的 svc 加上

annotations:
    service.kubernetes.io/topology-mode: "Auto"

這時候我們可以做幾個測試

測試 config 參考

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-a
  namespace: matt
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx-a
  template:
    metadata:
      labels:
        app: nginx-a
    spec:
      # 使用 topologySpreadConstraints 強制平均分佈
      topologySpreadConstraints:
        - maxSkew: 1  # 最多允許相差 1 個 Pod
          topologyKey: topology.kubernetes.io/zone
          whenUnsatisfiable: DoNotSchedule
          labelSelector:
            matchLabels:
              app: nginx-a
      # 移除原本的 podAntiAffinity，因為 topologySpreadConstraints 已經處理分佈
      containers:
        - name: nginx
          image: nginx:latest
          ports:
            - containerPort: 80
          volumeMounts:
            - name: nginx-conf
              mountPath: /etc/nginx/conf.d
          resources:
            requests:
              cpu: "100m"
              memory: "128Mi"
            limits:
              cpu: "200m"
              memory: "256Mi"
      volumes:
        - name: nginx-conf
          configMap:
            name: nginx-conf
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-a
  namespace: matt
  annotations:
    service.kubernetes.io/topology-mode: "Auto"
spec:
  selector:
    app: nginx-a
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: nginx-conf
  namespace: matt
data:
  default.conf: |
    server {
      listen 80;
      location / {
        return 200 "$hostname\n";
      }
    }

然而在實際測試後發現幾個特別的點

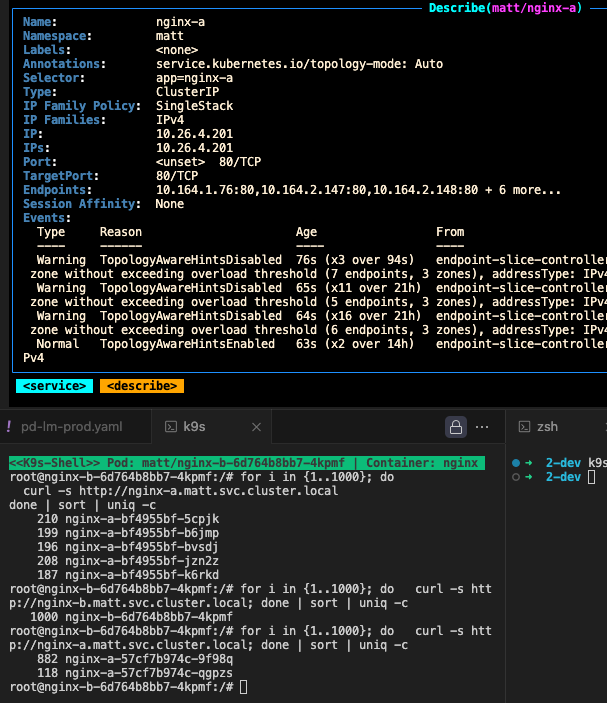

行為測試時，同仁只部署 2 顆 nginx-pod，TAR 功能正常、可運作。 但當在公司測試環境進行測試，卻發現 TAR Disabled 且網路分配依然是使用 round-robin。待 Pod 數量夠才會正常啟用

TAR 設置機制

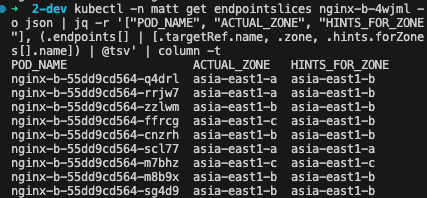

1. 服務 SVC 掛上 annotation 之後，對應的 resource endpointslice 會有對應流量分配設置!
2. 流量分配規則 依照 cluster 內的資源，分配每個 zone 的服務負載 從下面的 node 可以看到 cpu 資源分佈如下 zone-a: 12 zone-b: 80 zone-c: 4

   const nodes = [
    // asia-east1-a
    { zone: 'asia-east1-a', name: 'gke-matt-test-3b627bce-daoo', cpu: 4 },
    { zone: 'asia-east1-a', name: 'gke-pool-A-548e8958-2nxn', cpu: 8 },

    // asia-east1-b (10個節點)
    { zone: 'asia-east1-b', name: 'gke-pool-A-7ae1a02a-1fv1', cpu: 8 },
    { zone: 'asia-east1-b', name: 'gke-pool-A-7ae1a02a-8bjj', cpu: 8 },
    { zone: 'asia-east1-b', name: 'gke-pool-A-7ae1a02a-crk9', cpu: 8 },
    { zone: 'asia-east1-b', name: 'gke-pool-A-7ae1a02a-ft1u', cpu: 8 },
    { zone: 'asia-east1-b', name: 'gke-pool-A-7ae1a02a-j7jg', cpu: 8 },
    { zone: 'asia-east1-b', name: 'gke-pool-A-7ae1a02a-lvc8', cpu: 8 },
    { zone: 'asia-east1-b', name: 'gke-pool-A-7ae1a02a-px2g', cpu: 8 },
    { zone: 'asia-east1-b', name: 'gke-pool-A-7ae1a02a-z5z4', cpu: 8 },
    { zone: 'asia-east1-b', name: 'gke-pool-B-bfdf247d-9f1e', cpu: 8 },
    { zone: 'asia-east1-b', name: 'gke-pool-B-bfdf247d-xg6b', cpu: 8 },

    // asia-east1-c
    { zone: 'asia-east1-c', name: 'gke-matt-test-e8520bea-zpl4', cpu: 4 }
     ];


   因此在 endpointslice 的分配規劃會接近

   asia-east1-a: 12 cores ÷ 96 total cores = 12.5%
   asia-east1-b: 80 cores ÷ 96 total cores = 83.3%
   asia-east1-c: 4 cores ÷ 96 total cores = 4.2%


   為確保每個 zone 至少有一個服務實例，實際分配為 | zone-a | zone-b | zone-c | | —— | —— | —— | | 1 | 7 | 1 |

流量測試

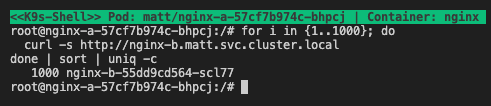

當我們從 zone-a 由 nginx-a 發起 request 流量全數由同一個 nginx-b 所承載

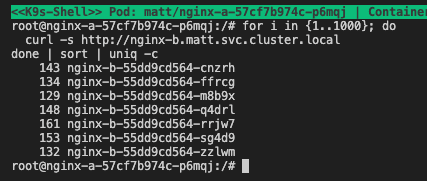

這次換從 zone-b 由 nginx-a 發起 request 回頭查看 endpointslice 的分配，換成會對負責 7 個 zone-b 的 nginx-b 做 round-robin 的輪詢

結論

跨 zone 的費用，沒少到 這個分配機制也蠻神奇的
